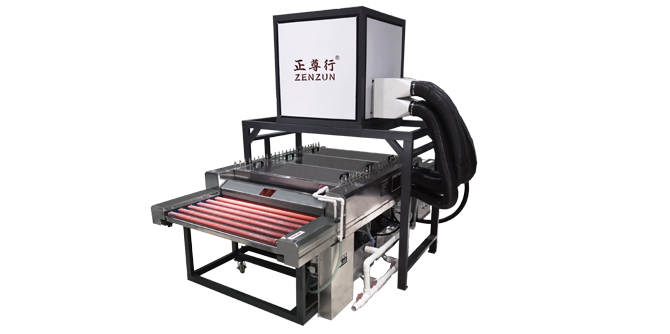

ZFB-1200 E Type Air Blowing Glass Washer

product details Video introduction

The casement component and water tank of ZFB-1200 Glass Washing Machine is made up of stainless steel material, which is durable and anti-corrosive. Adpoting the combination of 3-level cleaning along with 4 sets of brush, 2 sets of sponge rods, and 3 pairs of high pressure wind blades to ensure a better cleaning result and higher cleaning efficiency.



The washing component adopts an independently detachable design, which is easy to disassemble. The heating, transmission, drying, and temperature control components are all interconnected, saving energy while being reliably secure. The transportation components of the machine overall adopts a vulcanized rubber structure, which is persistently durable. Transmission is done by gear wheel, which is more stable and adjustable in speed. The highest speed can be up to 12 meters per minute, significantly increasing the efficacy.


MAIN TECHNICAL PARAMETER

WORKING VOLTAGE

380V.

MOTOR POWER

13.6Kw.

DRYING MACHINE POWER

7.5kw

MINIMUM CLEANING DIMENSION

1150mm.

MAXIMUM CLEANING DIMENSION

300 x 300mm.

WASHING SPEED

1-8m / min.

THICKNESS OF GLASS

3-15mm.

OVERALL DIMENSION

3600 x 2200 x 1200mm.
