Jin Wang's products have more than 20 national patent certificates. Customers are all over the north and south of the river and are exported to foreign countries

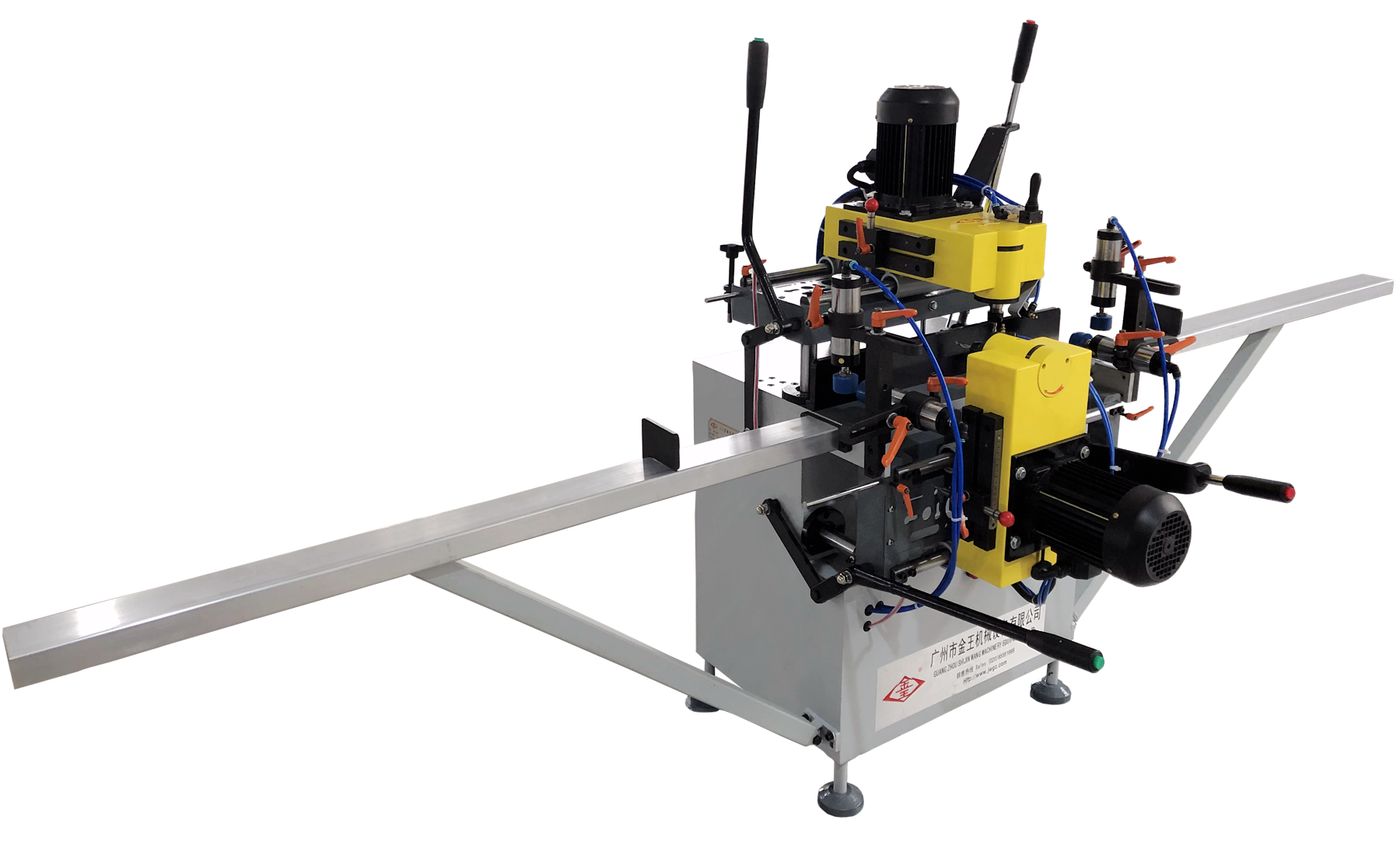

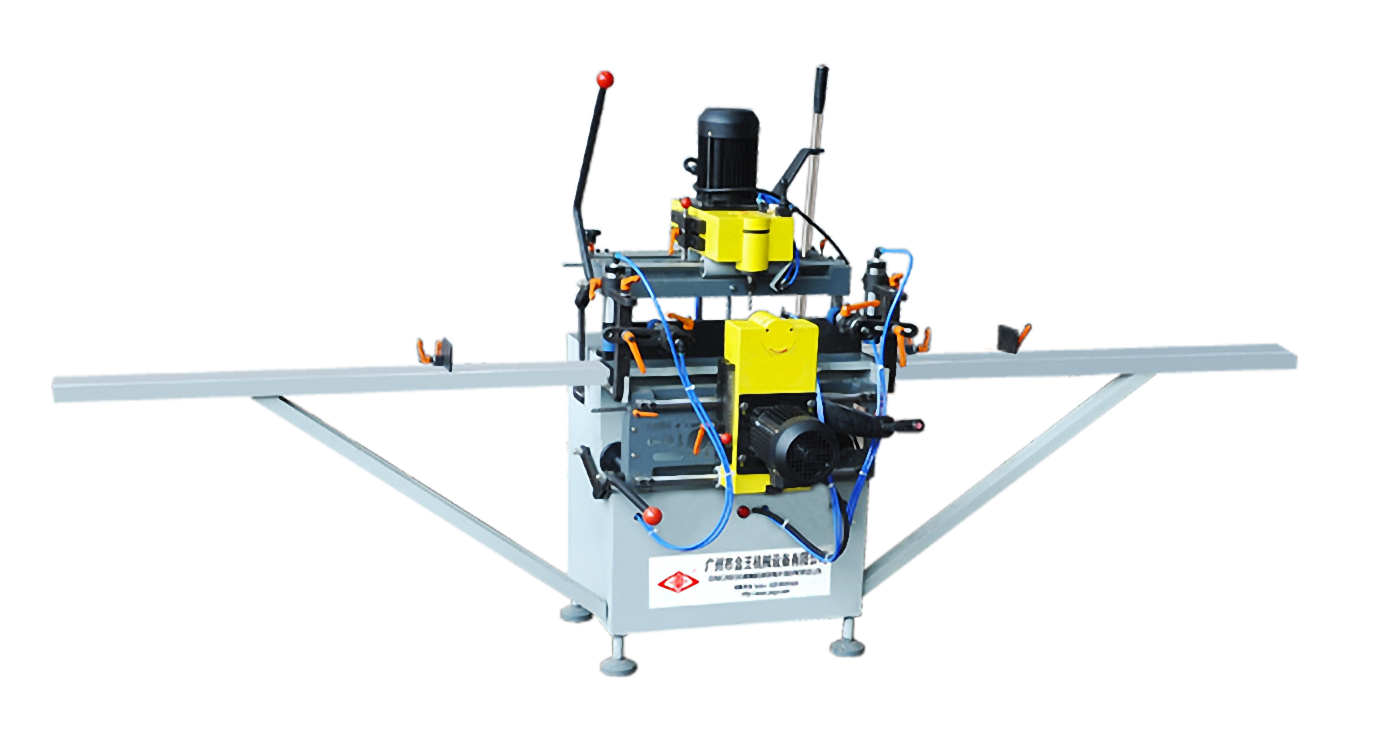

The current two copy router machines are refined on the basis of similar models. Focusing on product’s operating handiness, practicality and durability; in fact all of these aspects have received customers’ approval and compliment, its sales volume is impressive as well.
Product Structure and Characteristics:
A recently refined bearing block composition, convenient to change belt, completing the product’s composition
Meticulously made straight axis guiding system, ensuring a stable operation for milling blade, and a more effortless manipulation
Combining a high level milling blade tong holder with a highly refined main axis taper by which it is easier to assemble milling blade
Equipped with our company’s excellent pneumatic atomized cooling system, ensuring better milling efficacy and longer blade longevity
MAIN TECHNICAL PARAMETER | |
WORKING VOLTAGE | 380V/220V. |
MOTOR POWER | 2x1.1Kw. |
MOTOR ROTARY SPEED | 2800r/min. |
AXIS ROTARY SPEED | 11500r/min |
DRILL DIAMETER | Ø5mm, Ø8mm. |
PROFILING RANGE | 300x100mm |
MILLING HEIGHT | VERTICAL 110mm / HORIZONTAL 100mm. |
OPERATION PRESSURE | 0.6-0.8MPa. |
WEIGHT | 270KG. |
OVERALL DIMENSION | 900 x 890 x 1345mm. |
