Jin Wang's products have more than 20 national patent certificates. Customers are all over the north and south of the river and are exported to foreign countries

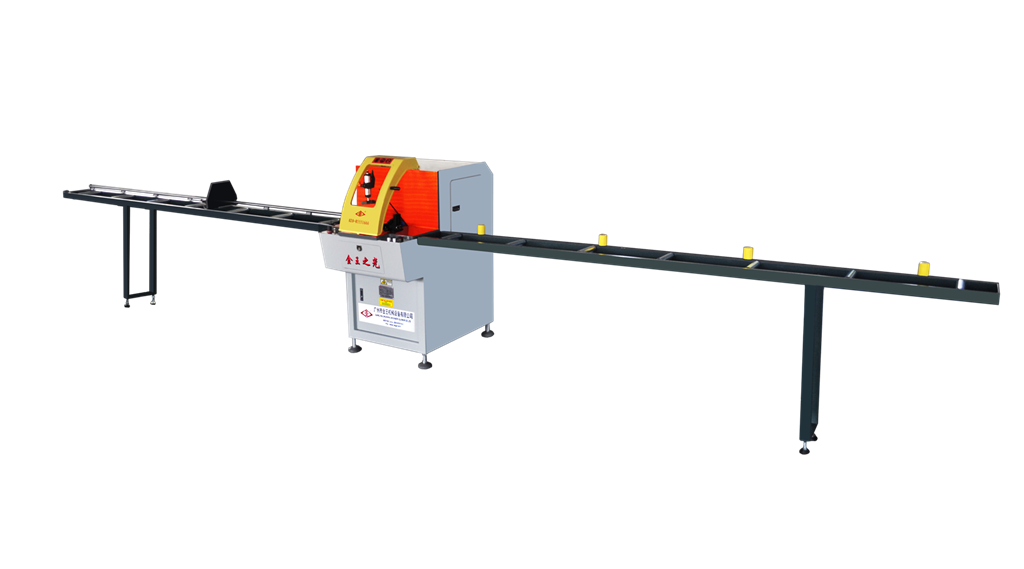

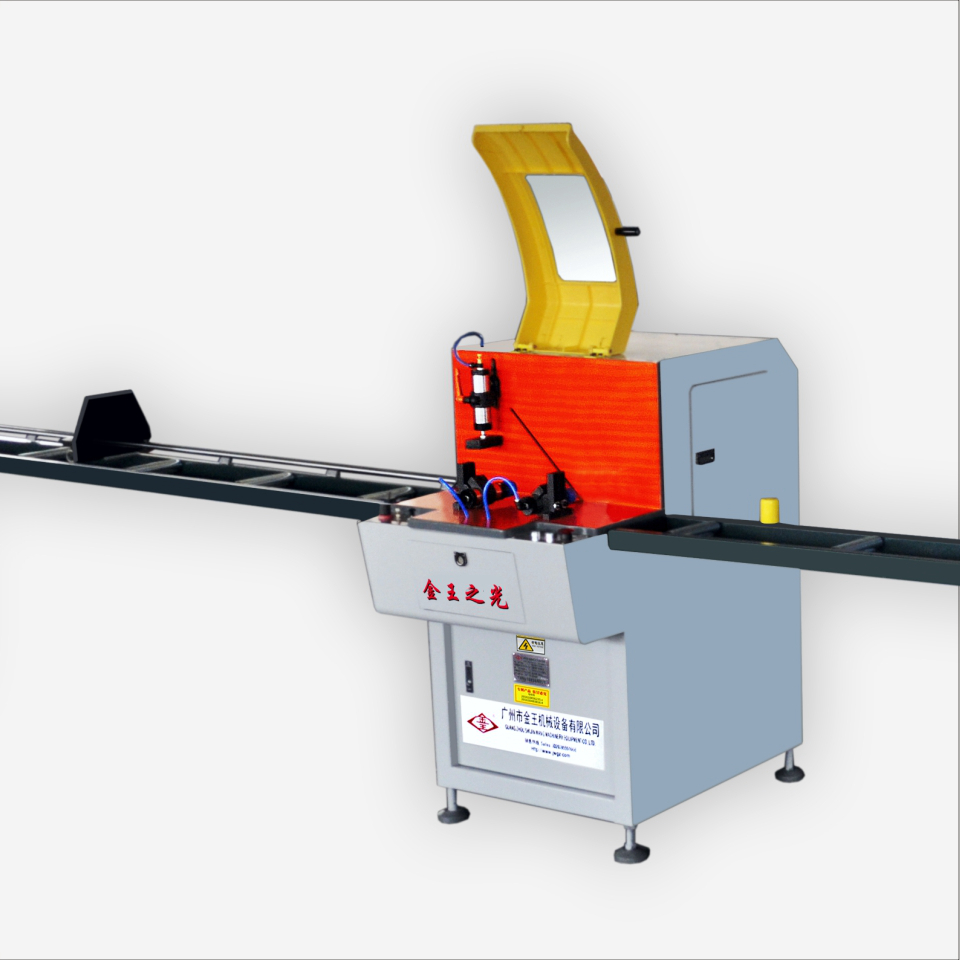

JPA450 Longitudinal 45° Shifting Cutting Machine is the model specifically designed for cutting Aluminum alloy profile in 45°. It has the features of 45° precision, stable structure, and specific function; especially suitable for cutting 45° in various door and window profile.
Product Structure and Characteristics:
An operation platform that is finely forged, solid and steady, which ensure the platform free from deformation
Adopting a blade entry gas cylinder that is ed to material pressing gas cylinder, enabling handy operation and accurate positioning
Operated by gas – oil fusion cylinder, ensuring blade feeding reliably steady, adjustable in speed, and high efficiency
Adopting passage of shifting across twin precise guide rails in order to ensure smooth cut and increase cutting surface
Equipped with our company’s excellent pneumatic atomized cooling system, ensuring better cutting efficacy and longer blade longevity
Gas-driven pressing and gas-liquid cutting lock, safe and reliable
Blade Entry:
MAIN TECHNICAL PARAMETER | |
WORKING VOLTAGE | 380V / 220V. |
MOTOR POWER | 2.2Kw. |
MOTOR ROTARY SPEED | 2800r/min. |
SAW DIMENSION | Ø455×Ø25.4mmx4mm. |
MAX CUTTING HEIGHT | 125mm. (Rectangular Profile) |
MAX CUTTING WIDTH | 125mm. (Rectangular Profile) |
OPERATION PRESSURE | 0.6-0.8MPA. |
WEIGHT | 280KG. |
OVERALL DIMENSION | 680 x 1050 x 1350mm. |
