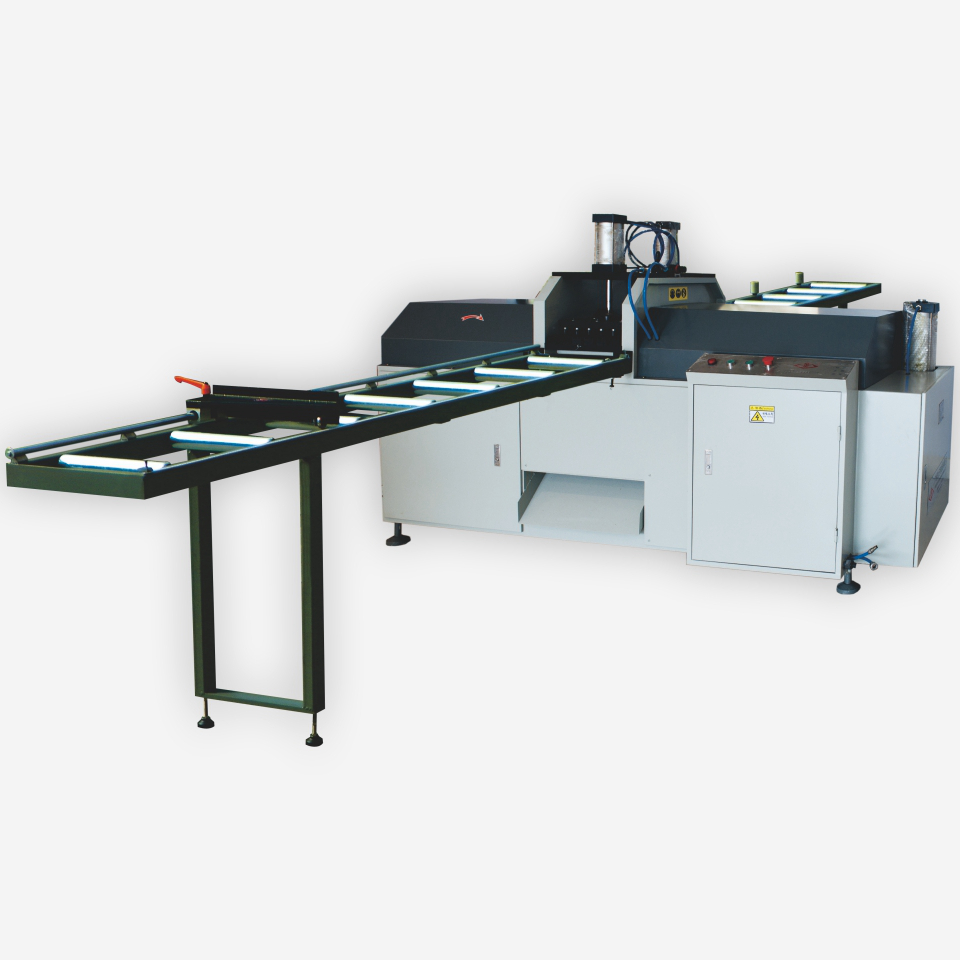

JVB400 Horizontal V Type Cutting Machine

product details Video introduction

This model of Elevating V Type Cutting Machine is the fourth generation product of our company. Still remember the previous third generation product revised with the original design of automatic saw blade descend during the drawcut (Patent # 200920194599.1) This technique innovatively resolves the long-term issue of blade dragging during drawcut, surpassing its contemporary products and imitation. d on this very premise, the current fourth revise has increased the feeding distance in order to stabilize the cutting efficacy, trustworthy for widespread promotion and application. Through adjusting the tong holder dimension, it is suitable for cutting in 45° for materials of different size and type. The current product is popular to our customers since it has been launched in the market.



Product Structure and Characteristics:



  • Original design of automatic saw blade descend during the drawcut, eliminating the issue of blade dragging, idealizing the cutting efficacy

  • Succeeding the exquisite design of the previous product – tongs can shift horizontally to the blade after the elevated blades have been tuned, providing better support to materials, and which is reason why the cutting efficacy is exceptionally ideal

  •  Mechanical motor is equipped with straight axes in both vertical and horizontal guide rail, making movement steadily flexible

  • The equipped feeding prop and positioning device are the essential for straight axis guiding and fine processing

  • Equipped with our company’s excellent pneumatic atomized cooling system, ensuring better milling efficacy and longer blade longevity





MAIN TECHNICAL PARAMETER

WORKING VOLTAGE

380V.

MOTOR POWER

2x2.2Kw.

MOTOR ROTARY SPEED

2800r/min.

SAW SPECIFICATION

Ø405×Ø25.4mmx3.6mm.

MAX CUTTING HEIGHT

100mm.

WORK DISTANCE

1100mm.

MATERIAL CLAMPING CAPACITY

6  (OF THE 38 OR 50 TYPE PROFILE)

OPERATION PRESSURE

0.6-0.8MPA.

TRANSMISSION METHOD

MOTOR DIRECTLY TURNING THE SAW BLADE

COOL DOWN METHOD

ATOMIZED DIESEL SPRAY

WEIGHT

880KG.

OVERALL DIMENSION

2450 x 1050 x 1460mm.
