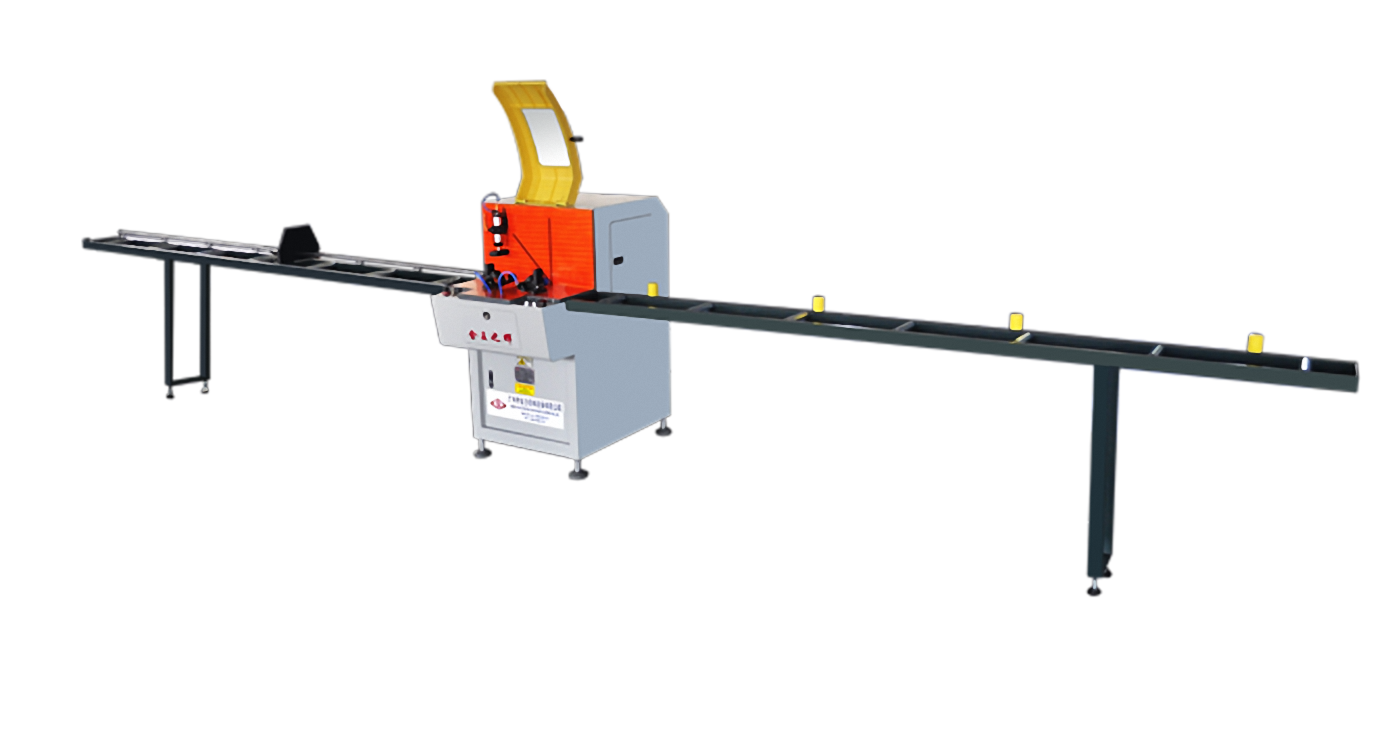

JDP450-90º/45º Single-Head Cutting Machine

product details Video introduction

JDP450 Longitudinal 90°/45° Shifting Cutting Machine is the model suitable for cutting Aluminum alloy profile in both 45° and 90°. It has the features of angle precision, stable structure, and wide application on cutting 45°and 90° in various door and window profile.



Product Structure and Characteristics:

  • An operation platform that is finely forged, solid and steady, which ensure the platform free from deformation

  • Adopting a blade entry gas cylinder that is ed to material pressing gas cylinder, enabling handy operation and accurate positioning

  • Operated by gas – oil fusion cylinder, ensuring blade feeding reliably steady, adjustable in speed, and high efficiency

  • Adopting passage of shifting across twin precise guide rails in order to ensure smooth cut and increase cutting surface

  • Equipped with our company’s excellent pneumatic atomized cooling system, ensuring better cutting efficacy and longer blade longevity

  • Pneumatic pressing and pneumatic-hydraulic lock, safe and reliable






MAIN TECHNICAL PARAMETER

WORKING VOLTAGE

380V / 220V.

MOTOR POWER

2.2Kw.

MOTOR ROTARY SPEED

2800r/min.

SAW SPECIFICATION

Ø455×Ø25.4mmx4mm.

CUT SECTION in  45°

125 x 125mm.(Rectangular Profile)

CUT SECTION in  90°

125 x 180mm.(Rectangular Profile)

OPERATION PRESSURE

0.6-0.8MPA

WEIGHT

320KG.

OVERALL DIMENSION

680 x 1050 x 1350mm.
