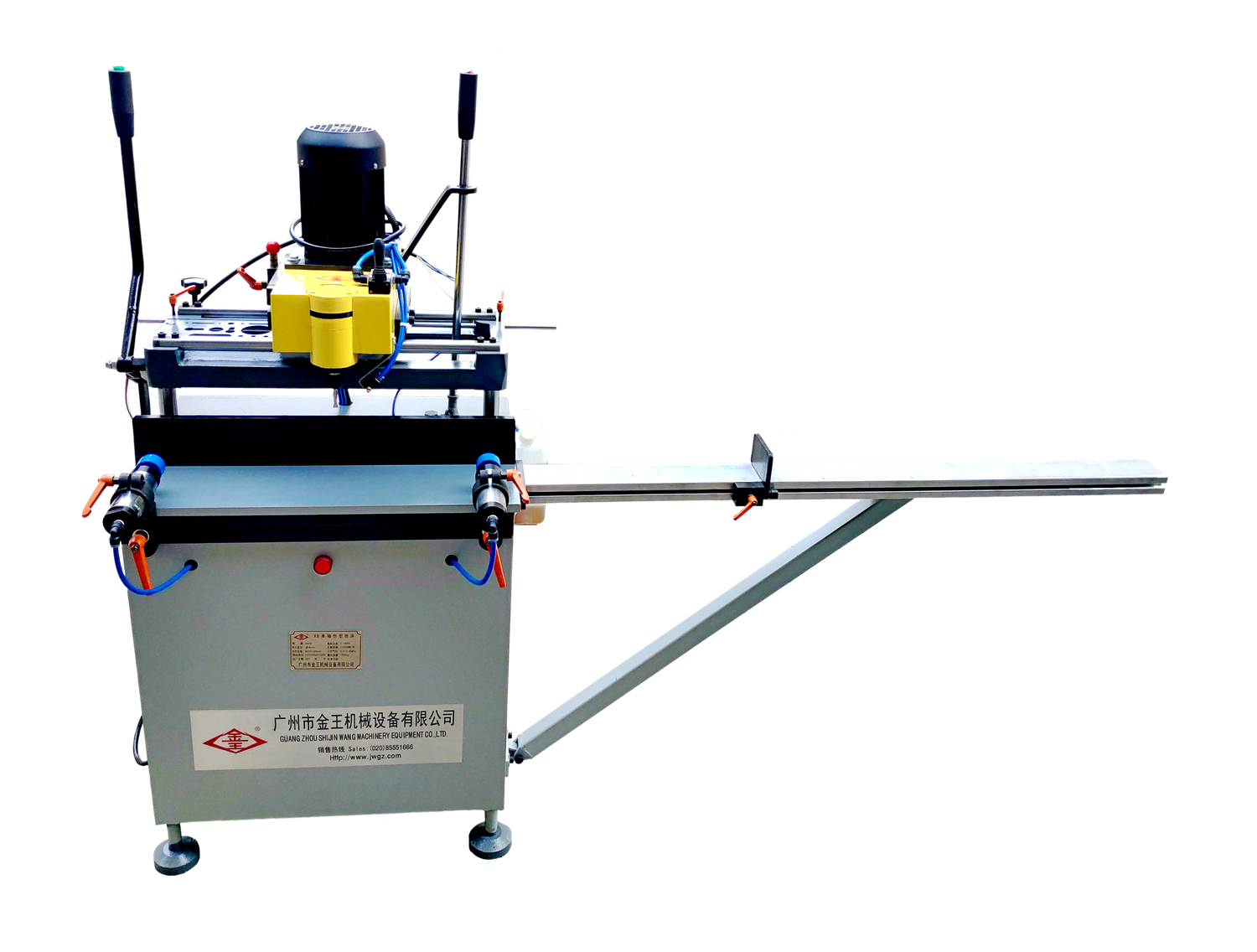

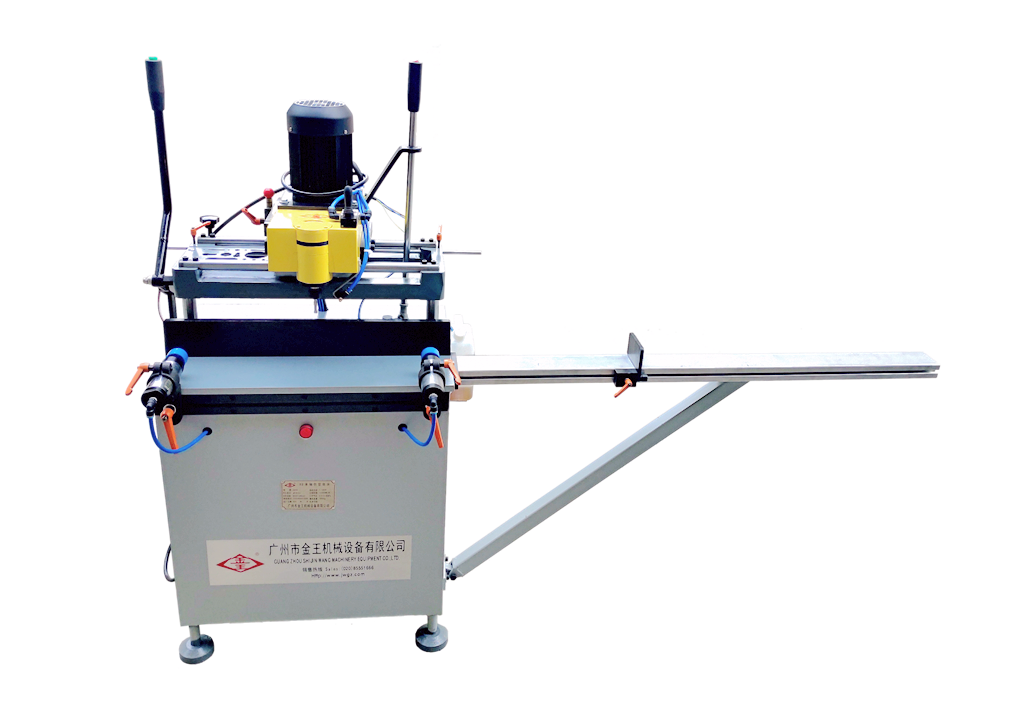

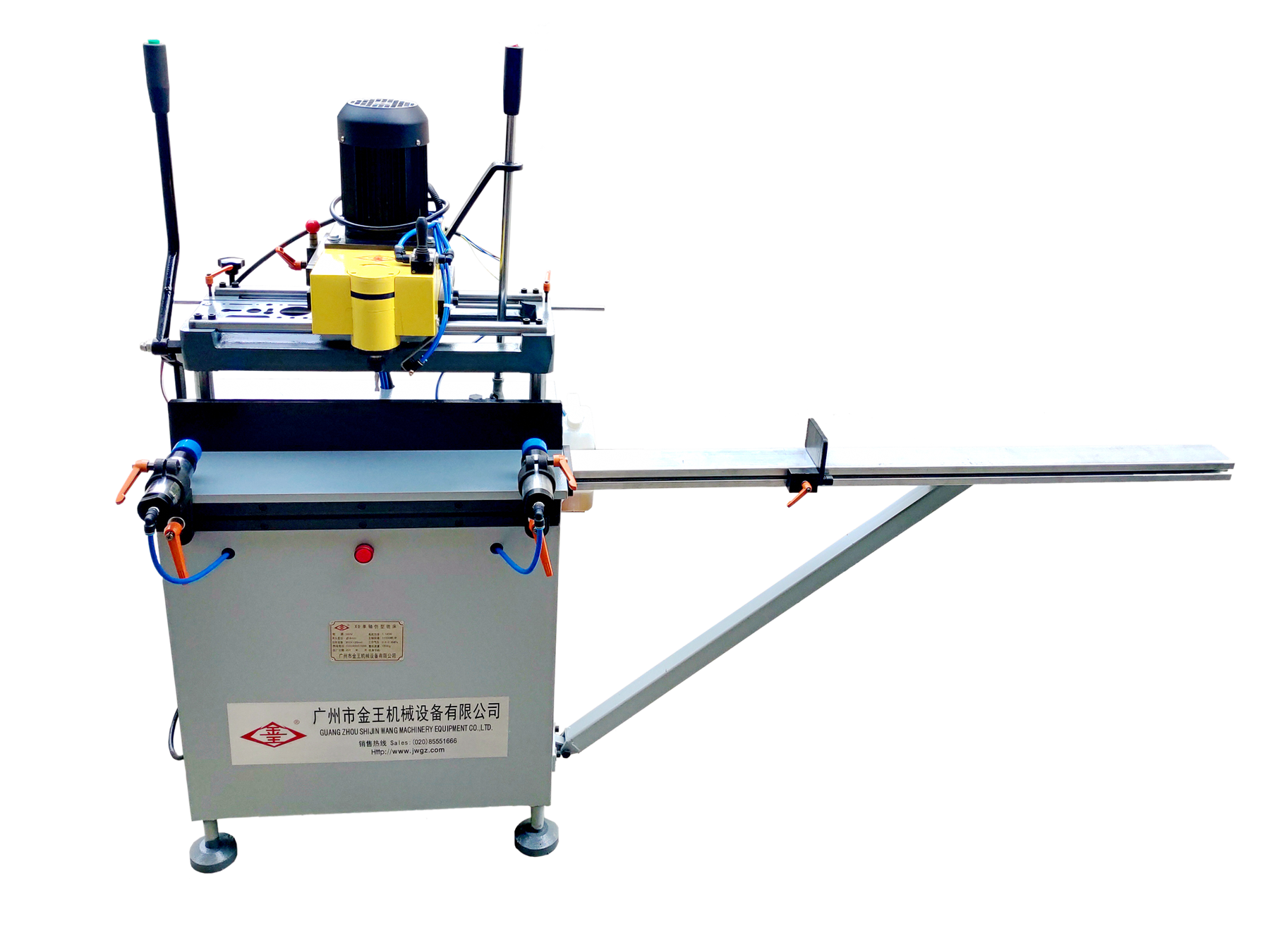

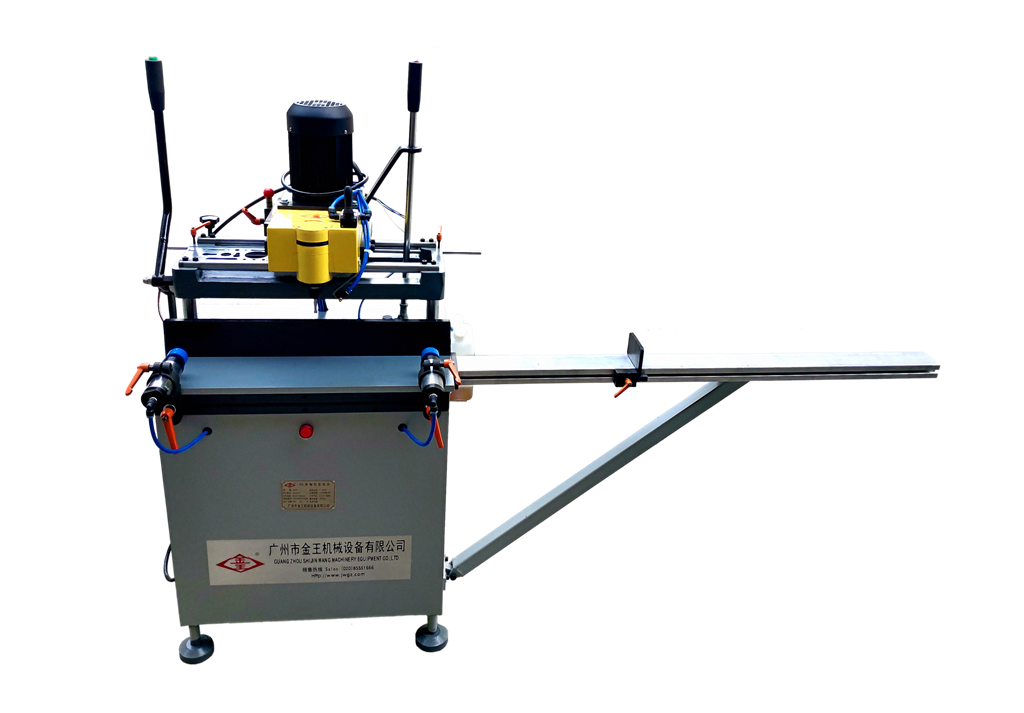

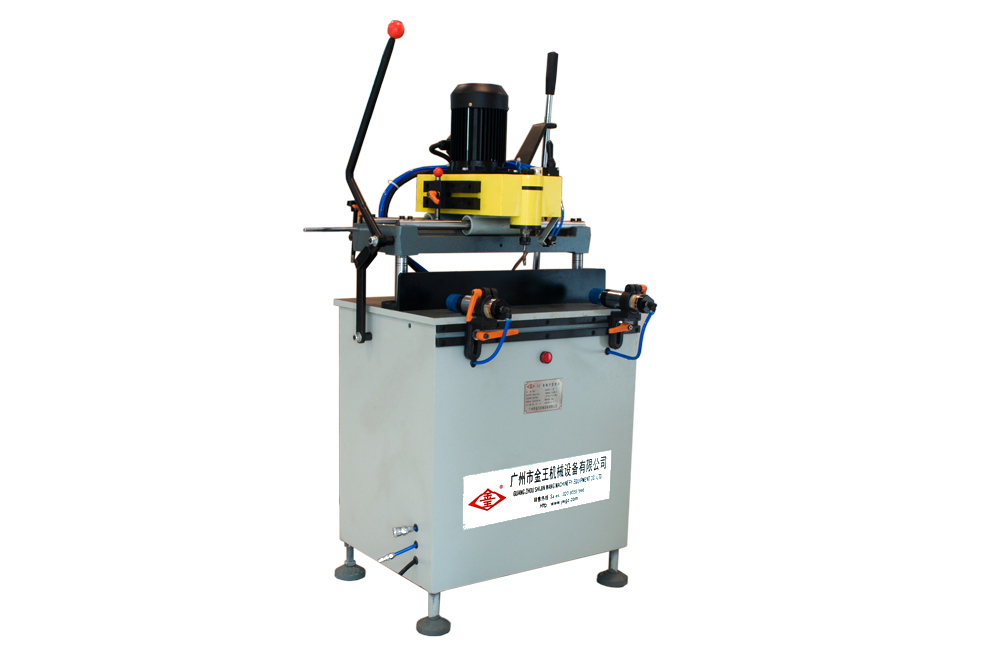

XD Single-Axis Copy Router

product details Video introduction

The current two copy routers are refined on the basis of similar models. Focusing on product’s operating handiness, practicality and durability; in fact all of these aspects have received customers’ approval and compliment, its sales volume is impressive as well. The current model is the 220V version of our XD Single-Axis Copy Router, more convenient for universal context.

Product Structure and Characteristics:

A recently refined bearing block composition, convenient to change belt, completing the product’s composition
Meticulously made straight axis guiding system, ensuring a stable operation for milling blade, and a more effortless manipulation
Combining a high level milling blade tong holder with a highly refined main axis taper by which it is easier to assemble milling blade
Equipped with our company’s excellent pneumatic atomized cooling system, ensuring better milling efficacy and longer blade longevity

MAIN TECHNICAL PARAMETER
WORKING VOLTAGE	220V.
MOTOR POWER	1.1Kw.
MOTOR ROTARY SPEED	2800r/min.
AXIS ROTARY SPEED	11500r/min
DRILL DIAMETER	Ø5mm, Ø8mm.
PROFILING RANGE	300x100mm
MILLING HEIGHT	110mm
OPERATION PRESSURE	0.6-0.8MPa.
WEIGHT	180KG.
OVERALL DIMENSION	750 x 800 x 1345mm.
